Z3-4ADSN-4 4MP 3" IP PTZ with x4 Zoom, 50m IR LED

Code: PC-5158

Features

Features

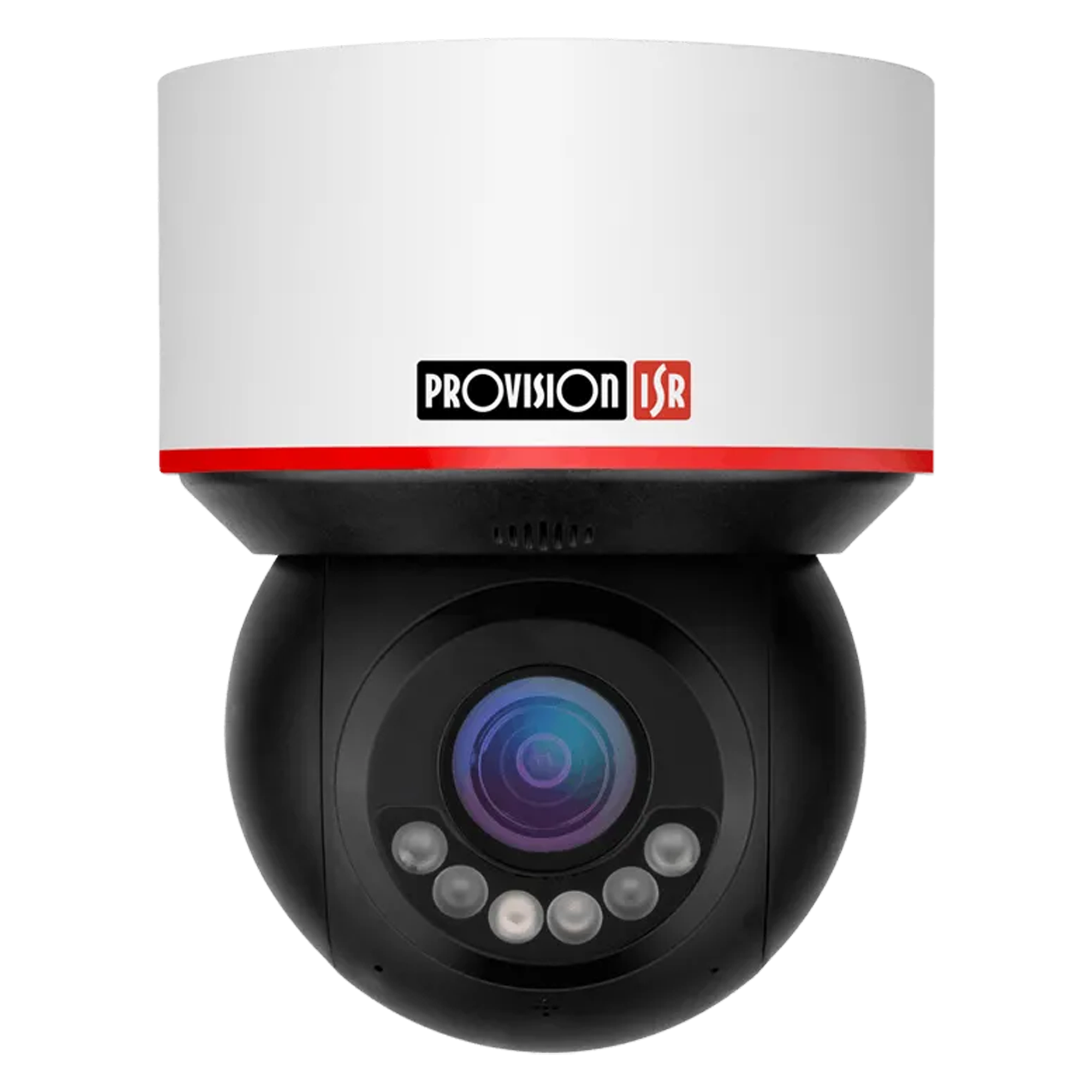

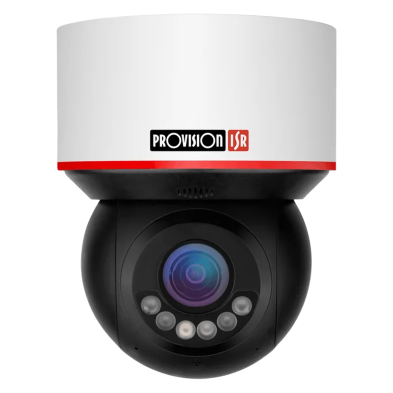

Z3-4ADSN-4 4MP AI IP PTZ Camera with 4x Zoom and 50m IR Night Vision

The Z3-4ADSN-4 4MP AI IP PTZ Camera combines intelligent video analytics, powerful pan-tilt-zoom functionality, and high-resolution surveillance in a compact and sleek design. Built for professional security applications, this NDAA-compliant PTZ camera delivers exceptional image quality, advanced tracking capabilities, and seamless integration with Provision-ISR surveillance platforms.

Featuring a 4MP sensor, 4x optical zoom lens, 50m infrared night vision, and intelligent AI features, the Z3-4ADSN-4 is ideal for monitoring residential estates, offices, retail environments, warehouses, parking areas, and commercial properties.

Fully compatible with Provision-ISR Ossia NVRs, Ossia VMS, and the Provision Cam2 mobile application, this PTZ camera offers flexible installation options and reliable remote monitoring from anywhere.

Key Features

  • 4MP high-resolution AI IP PTZ camera
  • 4x optical zoom lens for detailed long-range viewing
  • 50m Smart IR night vision for clear low-light monitoring
  • NDAA-compliant professional surveillance solution
  • Intelligent AI video analytics for enhanced detection
  • Compact and sleek PTZ design for versatile installation
  • Full compatibility with Provision-ISR platforms
  • Smooth pan, tilt, and zoom operation with high preset accuracy
  • H.265/H.264 video compression for efficient bandwidth and storage usage
  • ONVIF Profile T/S/G compatibility for third-party integration
  • IP66 weatherproof protection for indoor and outdoor use

Advanced PTZ Performance

The Z3-4ADSN-4 delivers responsive PTZ functionality with:

  • Pan Range: 355°
  • Tilt Range: -5° to 185° with Auto Flip
  • Preset Speed: 50° per second
  • Preset Accuracy: 0.1°
  • 300 Preset Positions
  • 4 Patterns and 8 Cruise Paths
  • Park Action and Power-Off Memory Functions
  • Scheduled Task Support

Its intelligent PTZ capabilities make it ideal for active monitoring and wide-area surveillance applications.

Superior Video Quality

Equipped with a 1/2.7” CMOS sensor and 2560 × 1440 resolution at up to 30FPS, this PTZ camera provides sharp, detailed video for both live viewing and recorded playback.

Advanced image enhancement technologies include:

  • True WDR (120dB)
  • HLC (Highlight Compensation)
  • BLC (Backlight Compensation)
  • 3D Digital Noise Reduction
  • True Day & Night ICR Functionality

These features ensure clear imaging in challenging lighting conditions.

Flexible Connectivity and Storage

The Z3-4ADSN-4 supports:

  • Alarm Input/Output
  • Audio Input/Output
  • SD Card Recording up to 256GB
  • Event and Scheduled Recording
  • PoE+ (802.3at) Power Support

This allows for simplified installation and intelligent event-based recording.

Technical Specifications

  • Model: Z3-4ADSN-4
  • Sensor: 1/2.7″ CMOS
  • Resolution: 4MP (2560×1440)
  • Lens: 2.8mm to 12mm Motorized Lens
  • Optical Zoom: 4x
  • IR Distance: Up to 50m
  • Compression: H.264 / H.265 / MJPEG
  • ONVIF Profiles: T / S / G
  • Weather Rating: IP66
  • Power Supply: PoE+ (802.3at) or DC12V±20%/2A
  • Weight: Approximately 1.2kg

Ideal Applications

  • Commercial Security
  • Residential Estates
  • Warehouses
  • Retail Stores
  • Parking Areas
  • Office Buildings
  • Perimeter Surveillance
  • Remote Monitoring Installations

Upgrade your surveillance system with the Z3-4ADSN-4 4MP AI PTZ Camera — intelligent monitoring, smooth PTZ control, and powerful night vision in one professional security solution.
