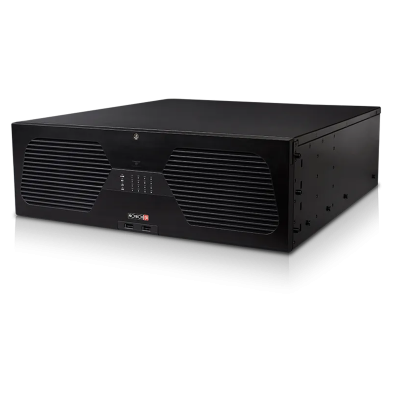

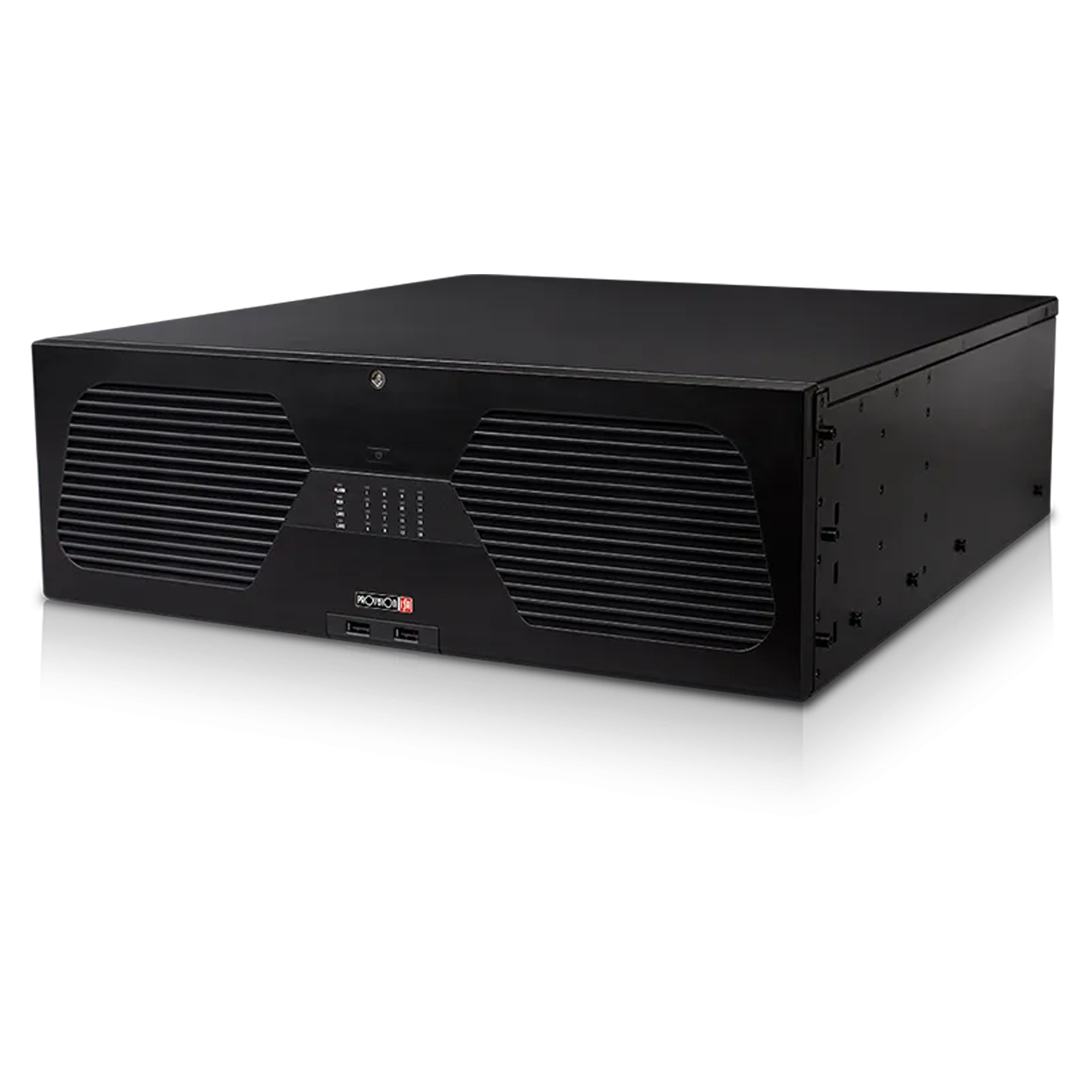

NVR16-128RFAN(3U) 128CH 16MP RAID NVR

Code: PC-5421

Features

Features

The Provision-ISR NVR16-128RFAN(3U) is a flagship 128-channel 16MP Enterprise Network Video Recorder (NVR) designed for the largest and most demanding CCTV installations across South Africa. Ideal for smart cities, airports, mining operations, ports, industrial complexes, universities, hospitals and critical infrastructure, it delivers exceptional scalability, intelligent AI analytics and enterprise-class reliability.

Supporting up to 128 IP cameras with 768Mbps incoming and outgoing bandwidth, the recorder captures real-time 16MP video while providing advanced surveillance features including Face Recognition, Licence Plate Recognition (LPR), DDA2 Object Classification, DDA Search, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables facial recognition on up to 4 non-AI IP cameras, extending AI capabilities to existing surveillance systems.

Engineered for mission-critical environments, the NVR features 8K HDMI output, multiple HDMI displays, 24 alarm inputs, 4 alarm outputs, two-way audio, and supports 16 SATA drives plus 2 eSATA drives, providing up to 180TB of storage capacity. Integrated RAID 0, 1, 5, 6 and 10 ensures maximum data protection, redundancy and continuous recording.

Fully NDAA compliant, the recorder includes the Check Point Quantum IoT Nano Agent, delivering enterprise-grade cybersecurity to defend against common IoT cyber threats.

The Provision-ISR NVR16-128RFAN(3U) is the ultimate surveillance recording platform for professional security installations, combining ultra-high-resolution recording, powerful AI analytics, massive storage capacity and advanced cyber protection to safeguard South Africa's largest commercial, industrial and government facilities.

Video:

  • Input: 128 Channel Support
  • 128 Channel Standard Connection (Via RJ-45 Network Port)
  • Output: HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable)
    HDMI2: 4K, 1080P, 1280×1024, 1024×768
    HDMI3: 4K, 1080P, 1280×1024, 1024×768
    HDMI4: 1080P, 1280×1024, 1024×768
    VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)

Bandwidth:

  • Incoming: 768Mbps
  • Outgoing: 768Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
  • Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.

Recording:

  • 128CH 16MP Real-Time
  • FPS: 3200 (PAL) / 3840 (NTSC)

Playback:

  • Local: 16Ch Simultaneously
  • Remote: 16Ch Simultaneously

Audio:

  • Input: 1CH + IPC Inputs
  • Output: 1CH + IPC Output
  • 2 Way Audio

Alarm:

  • Input: 24+IPC
  • Output: 4+IPC

Storage:

  • 16 x SATA (Up to 10TB each)
  • 2 x E-SATA (Up to 10TB each)
  • RAID: (0/1/5/6/10) Support

USB Port:

  • 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

  • 2 x RJ-45: 10/100/1000Mbps Each

Remarks:

  • The following features are based on firmware v1.4.13.88618_RD260624 and are subject to firmware version changes.
