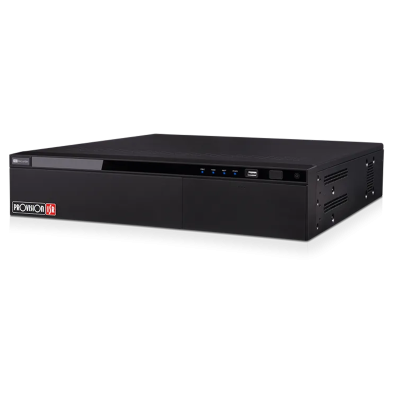

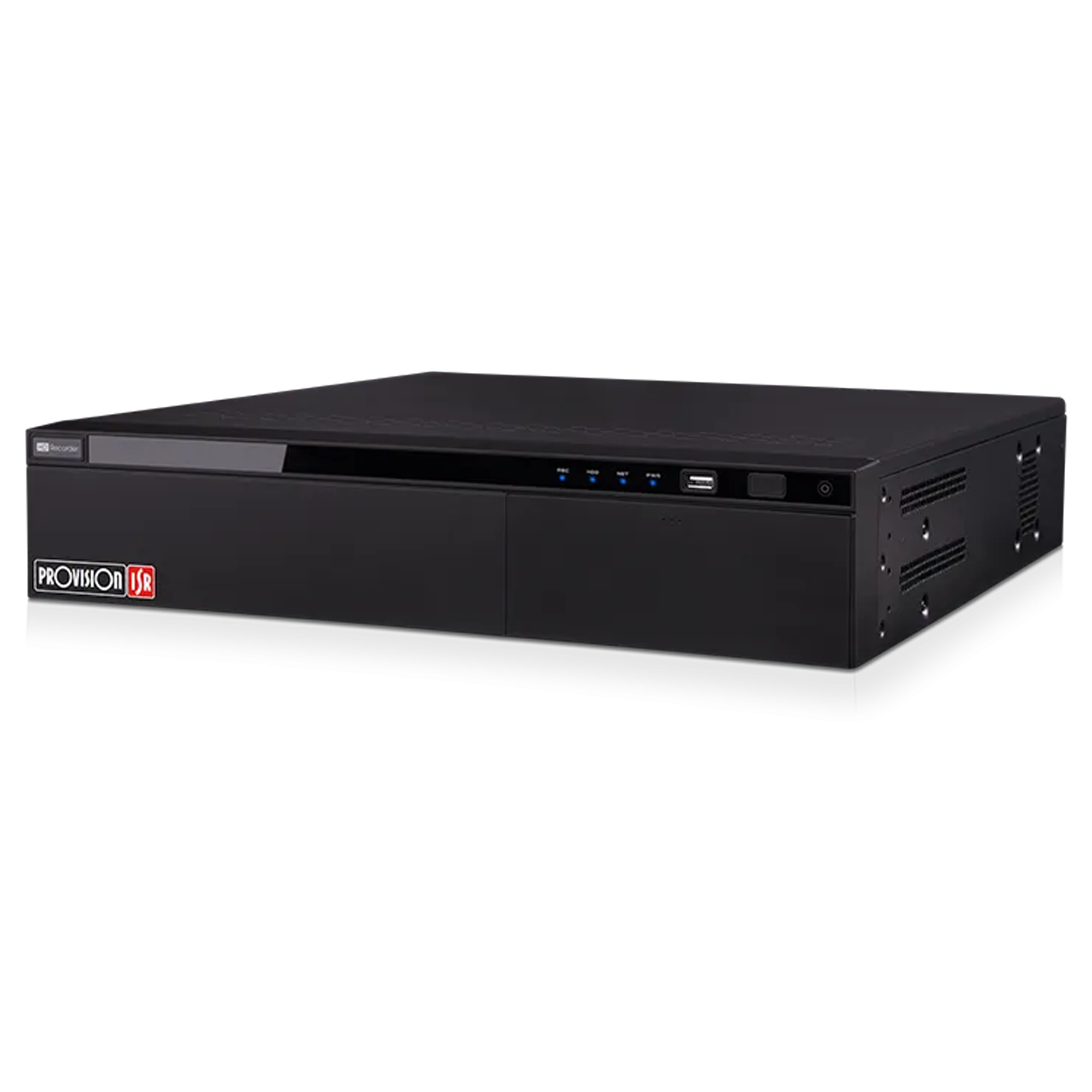

NVR16-641600RFAN(2U) 64CH 16MP NVR

Code: PC-5420

Features

Features

The Provision-ISR NVR16-641600RFAN(2U) is an enterprise-grade 64-channel 16MP Network Video Recorder (NVR) designed for the largest CCTV installations across South Africa. Ideal for airports, city surveillance, mining operations, logistics hubs, industrial facilities, shopping malls, universities and critical infrastructure, it delivers exceptional performance with real-time 16MP recording, advanced AI analytics and enterprise-level storage protection.

Supporting up to 64 IP cameras, the NVR features intelligent surveillance including Face Recognition, Licence Plate Recognition (LPR), DDA2 Object Classification, DDA Search, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables facial recognition on up to 4 non-AI IP cameras, expanding AI capabilities across existing CCTV systems.

Built for mission-critical environments, the recorder provides 640Mbps incoming and outgoing bandwidth, 8K HDMI output, multiple HDMI displays, 16 alarm inputs, 4 alarm outputs, two-way audio, and storage for 8 SATA drives plus 2 eSATA drives, supporting up to 100TB of storage. Integrated RAID 0, 1, 5, 6 and 10 ensures maximum data protection and continuous recording.

Fully NDAA compliant, the NVR includes the Check Point Quantum IoT Nano Agent, providing advanced protection against common IoT cyber threats and enhancing overall system security.

The Provision-ISR NVR16-641600RFAN(2U) is the ultimate surveillance platform for professional security installations, combining ultra-high-resolution recording, intelligent AI analytics, enterprise-grade RAID storage and advanced cybersecurity to protect large-scale facilities throughout South Africa.

Video:

  • Input: 64 Channel Support
  • 64 Channel Standard Connection (Via RJ-45 Network Port)
  • Output: HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable)
    HDMI2: 4K, 1080P, 1280×1024, 1024×768
    HDMI3: 4K, 1080P, 1280×1024, 1024×768
    HDMI4: 1080P, 1280×1024, 1024×768
    VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)

Bandwidth:

  • Incoming: 640Mbps
  • Outgoing: 640Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
  • Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.

Recording:

  • 64CH 16MP Real-Time
  • FPS: 1600 (PAL) / 1920 (NTSC)

Playback:

  • Local: 16Ch Simultaneously
  • Remote: 16Ch Simultaneously

Audio:

  • Input: 1CH + IPC Inputs
  • Output: 1CH + IPC Output
  • 2 Way Audio

Alarm:

  • Input: 16+IPC
  • Output: 4+IPC

Storage:

  • 8 x SATA (Up to 10TB each)
  • 2 x E-SATA (Up to 10TB each)
  • RAID: (0/1/5/6/10) Support

USB Port:

  • 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

  • 2 x RJ-45: 10/100/1000Mbps Each

Remarks:

  • The following features are based on firmware v1.4.13.88618_RD260624 and are subject to firmware version changes.
