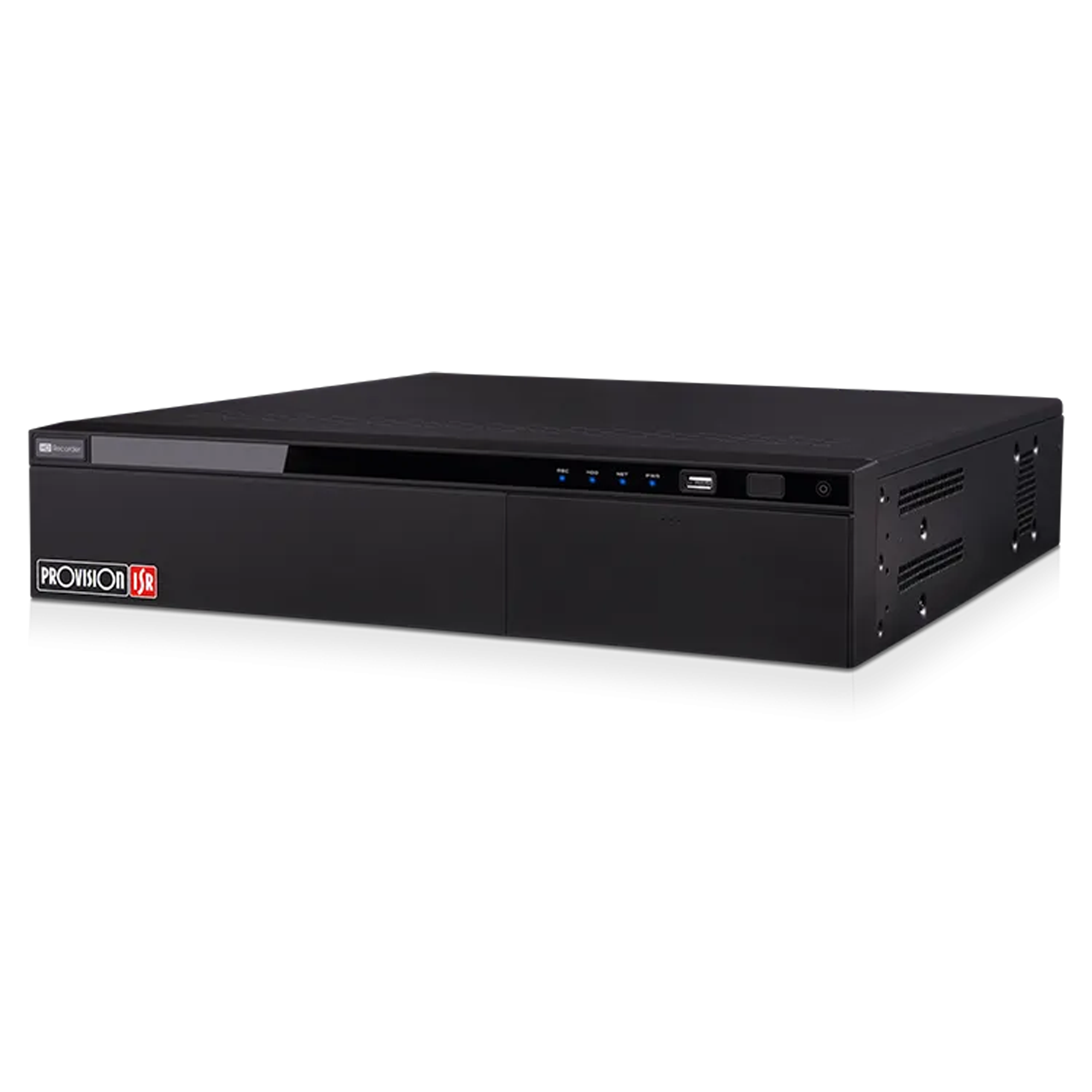

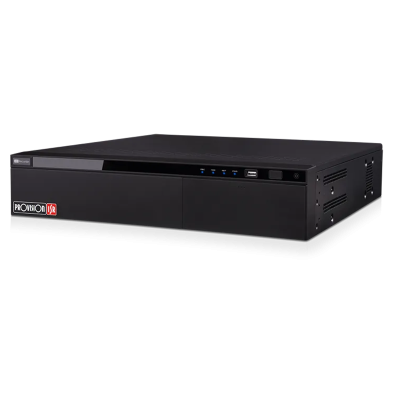

The Provision-ISR NVR12-32800RFAN(2U) is an enterprise-class 32-channel 12MP Network Video Recorder (NVR) designed for mission-critical CCTV installations across South Africa. Ideal for airports, data centres, logistics facilities, corporate campuses, shopping centres, hospitals and industrial sites, it combines real-time 12MP recording, advanced AI analytics, RAID storage protection and enterprise-grade cybersecurity for maximum reliability.
Supporting up to 32 IP cameras, the NVR delivers intelligent surveillance with Face Recognition, Licence Plate Recognition (LPR), DDA2 Object Classification, DDA Search, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables facial recognition on up to 2 non-AI IP cameras, extending AI functionality to existing systems.
Engineered for continuous operation, the recorder features 320Mbps incoming and outgoing bandwidth, dual Gigabit network ports, dual HDMI outputs with 4K support, 16 alarm inputs, 4 alarm outputs, two-way audio, and storage for 8 SATA drives plus 1 eSATA drive, supporting up to 90TB of total storage. Integrated RAID 0, 1, 5, 6 and 10 provides enhanced data protection and uninterrupted recording for critical surveillance environments.
Fully NDAA compliant, the recorder also incorporates the Check Point Quantum IoT Nano Agent, delivering advanced protection against common IoT cyber threats.
The Provision-ISR NVR12-32800RFAN(2U) is the ultimate recording platform for large-scale security installations, offering intelligent AI surveillance, enterprise-grade storage redundancy and dependable performance for professional CCTV systems throughout South Africa.
Video:
- Input: 32 Channel Support
- 32 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI1 (4K 30Hz, 1080P, 1280×1024), HDMI2 + VGA (1280×1024, 1080P)
Bandwidth:
- Incoming: 320Mbps
- Outgoing: 320Mbps
Decoding Support:
Analytics:
- Camera Tampering, DDA2 With Object Classification, DDA Search (Read the release notes), Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 32CH 12MP Real-Time
- FPS: 800 (PAL) / 960 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 16+IPC
- Output: 4+IPC
Storage:
- 8 x SATA (Up to 10TB each)
- 1 x E-SATA (Up to 10TB each)
- RAID: (0/1/5/6/10) Support
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
- The following features are based on firmware v1.4.13.88449_RD260615 and are subject to firmware version changes.
