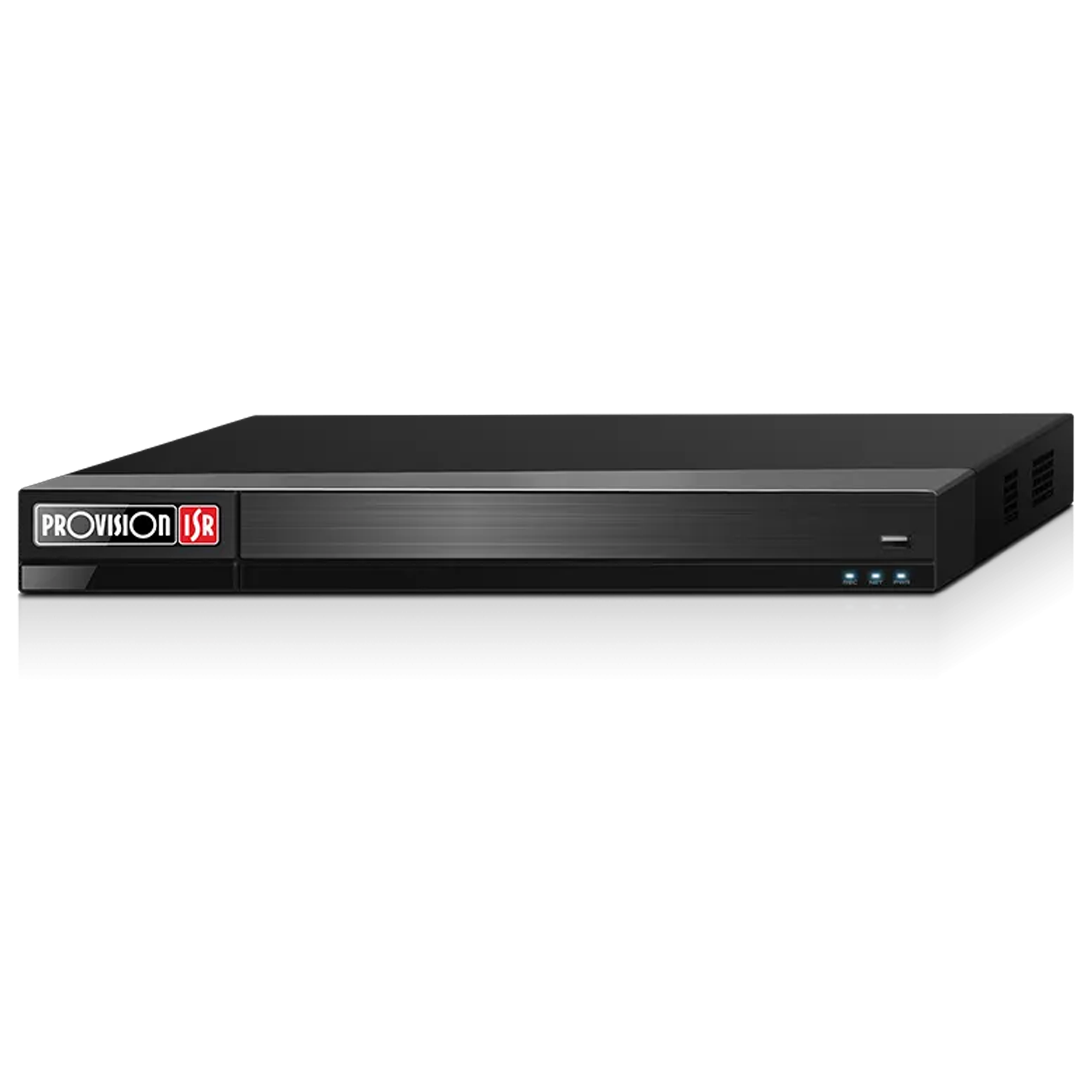

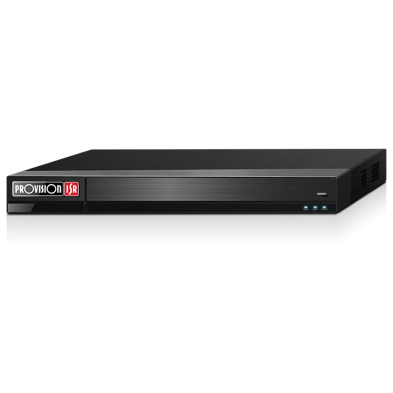

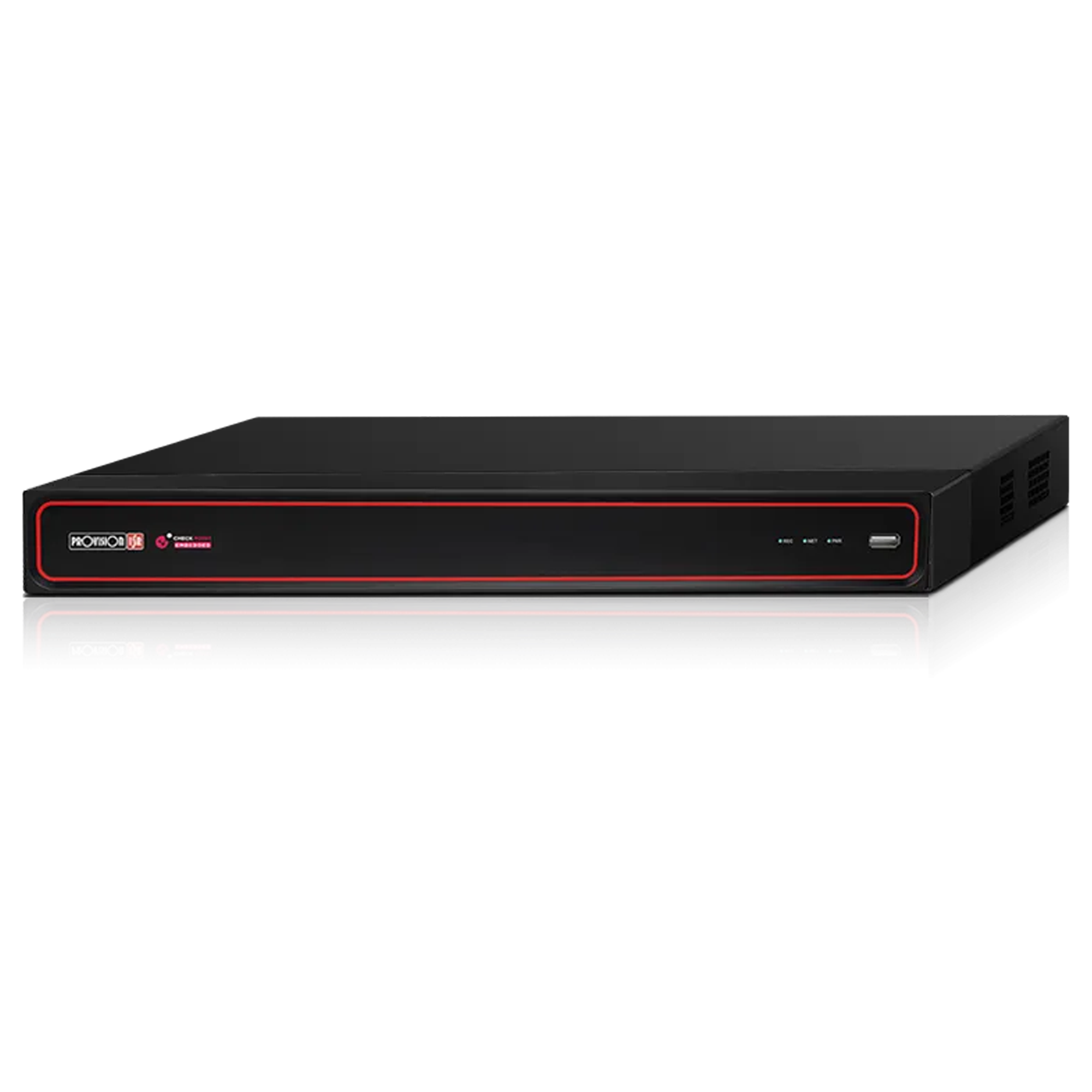

The Provision-ISR NVR12-32800FAN(1U) is an enterprise-grade 32-channel 12MP Network Video Recorder (NVR) engineered for large-scale CCTV installations across South Africa. Designed for corporate campuses, shopping centres, warehouses, industrial facilities, hospitals, schools and critical infrastructure, this NDAA-compliant recorder delivers exceptional performance with real-time 12MP recording, advanced AI analytics and integrated cybersecurity.
Supporting up to 32 IP cameras with 320Mbps incoming and 256Mbps outgoing bandwidth, the NVR ensures smooth, high-resolution recording and reliable remote monitoring. Intelligent AI features include Face Recognition, Licence Plate Recognition (LPR), DDA Search, DDA2 Object Classification, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables face detection and recognition on up to 2 non-AI IP cameras, extending AI capabilities to existing surveillance systems.
For enhanced cybersecurity, the recorder features the Check Point Quantum IoT Nano Agent, providing advanced runtime protection against common cyber threats. Dual Gigabit network ports, dual HDMI outputs with 4K display support, 16-channel simultaneous playback, two-way audio, 8 alarm inputs, 4 alarm outputs, and support for two SATA hard drives up to 10TB each provide the scalability and reliability required for demanding security environments.
The Provision-ISR NVR12-32800FAN(1U) combines enterprise-level AI surveillance, advanced cyber protection and high-capacity recording, making it the ideal solution for professional CCTV installations requiring intelligent analytics, dependable performance and future-ready security throughout South Africa.
Features:
Video:
- Input: 32 Channel Support
- 32 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI1 (4K 30Hz, 1080P, 1280×1024, 1024×768), HDMI2 + VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 320Mbps
- Outgoing: 256Mbps
Decoding Support:
Analytics:
- Camera Tampering, DDA Search (Read the release notes), DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 32CH 12MP Real-Time
- FPS: 800 (PAL) / 960 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 8+IPC
- Output: 4+IPC
Storage:
- 2 x SATA (Up to 10TB each)
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
The following features are based on firmware v1.4.13_88006_RD260520 and are subject to firmware version changes.
