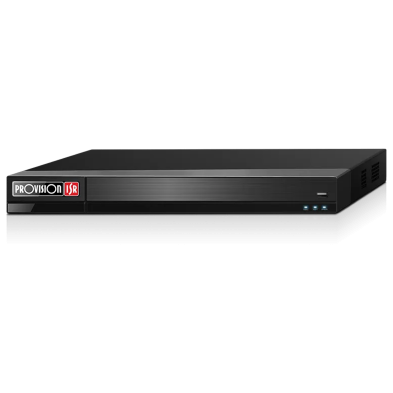

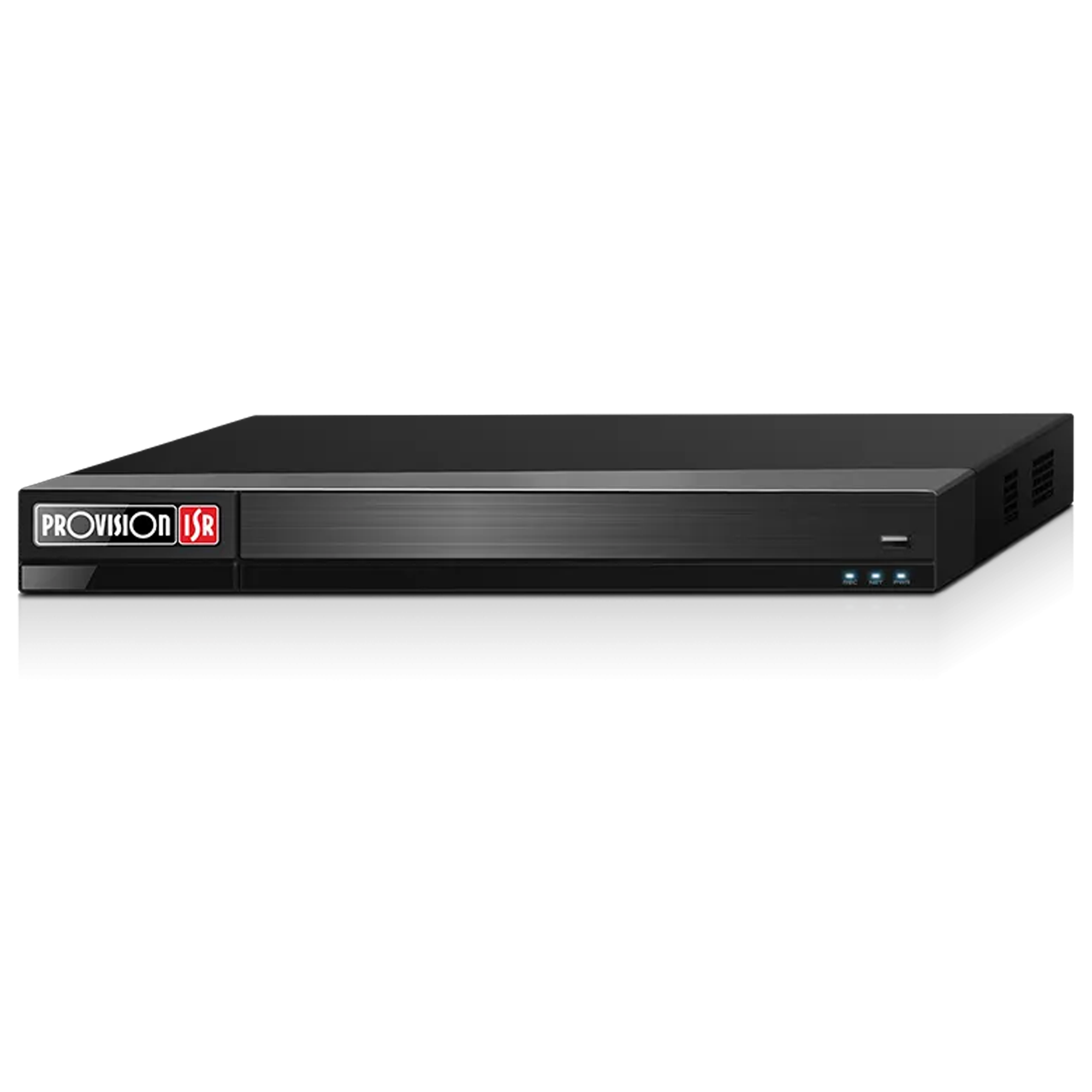

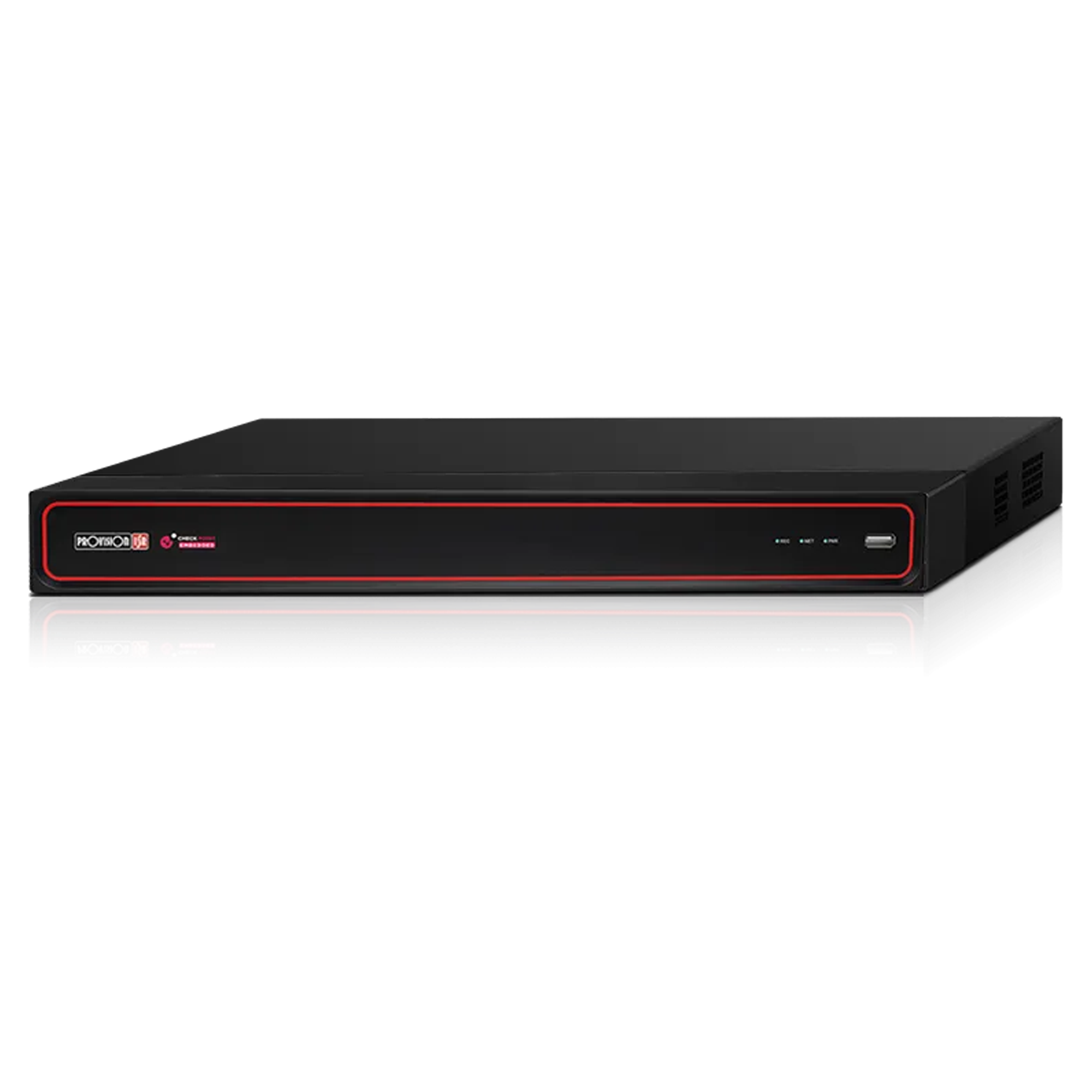

The Provision-ISR NVR12-16400PFAN(1U) is a premium 16-channel 12MP PoE Network Video Recorder (NVR) designed for large residential, commercial and industrial CCTV installations across South Africa. Featuring an integrated 16-port PoE switch, it powers and connects compatible IP cameras using a single Ethernet cable, reducing installation time and simplifying system deployment. Fully NDAA compliant, this high-performance recorder combines enterprise-grade reliability with advanced AI-powered surveillance.
Supporting real-time 12MP recording across all 16 channels, the NVR delivers exceptional image quality and intelligent security. Advanced analytics include Face Recognition, Licence Plate Recognition (LPR), DDA Search, DDA2 Object Classification, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Illegal Parking, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables facial recognition on up to 2 non-AI IP cameras, enhancing existing CCTV systems without requiring AI cameras on every channel.
Designed for professional installers, the recorder features 160Mbps incoming and outgoing bandwidth, 4K HDMI output, 16-channel simultaneous playback, two-way audio, 8 alarm inputs and 4 alarm outputs, and supports two SATA hard drives up to 10TB each, providing up to 20TB of secure video storage.
The Provision-ISR NVR12-16400PFAN(1U) is the ideal solution for businesses, warehouses, schools, office parks, retail centres and critical infrastructure requiring intelligent AI analytics, simplified PoE installation and dependable high-resolution recording. It delivers a scalable, future-ready CCTV platform trusted for professional security installations throughout South Africa.
Features:
Video:
- Input: 16 Channel Support
- 16 Channel PoE / Standard Network Connection (Via 16 x RJ-45 / Network)
- Output: HDMI (4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 160Mbps
- Outgoing: 160Mbps
Decoding Support:
Analytics:
- Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 16CH 12MP Real-Time
- FPS: 400 (PAL) / 480 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 8+IPC
- Output: 4+IPC
Storage:
- 2 x SATA (Up to 10TB each)
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 1 x RJ-45: 10/100/1000Mbps Each
Remarks:
The following features are based on firmware v1.4.13_88006_RD260520 and are subject to firmware version changes.
