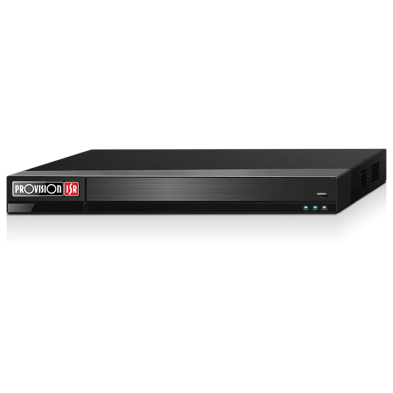

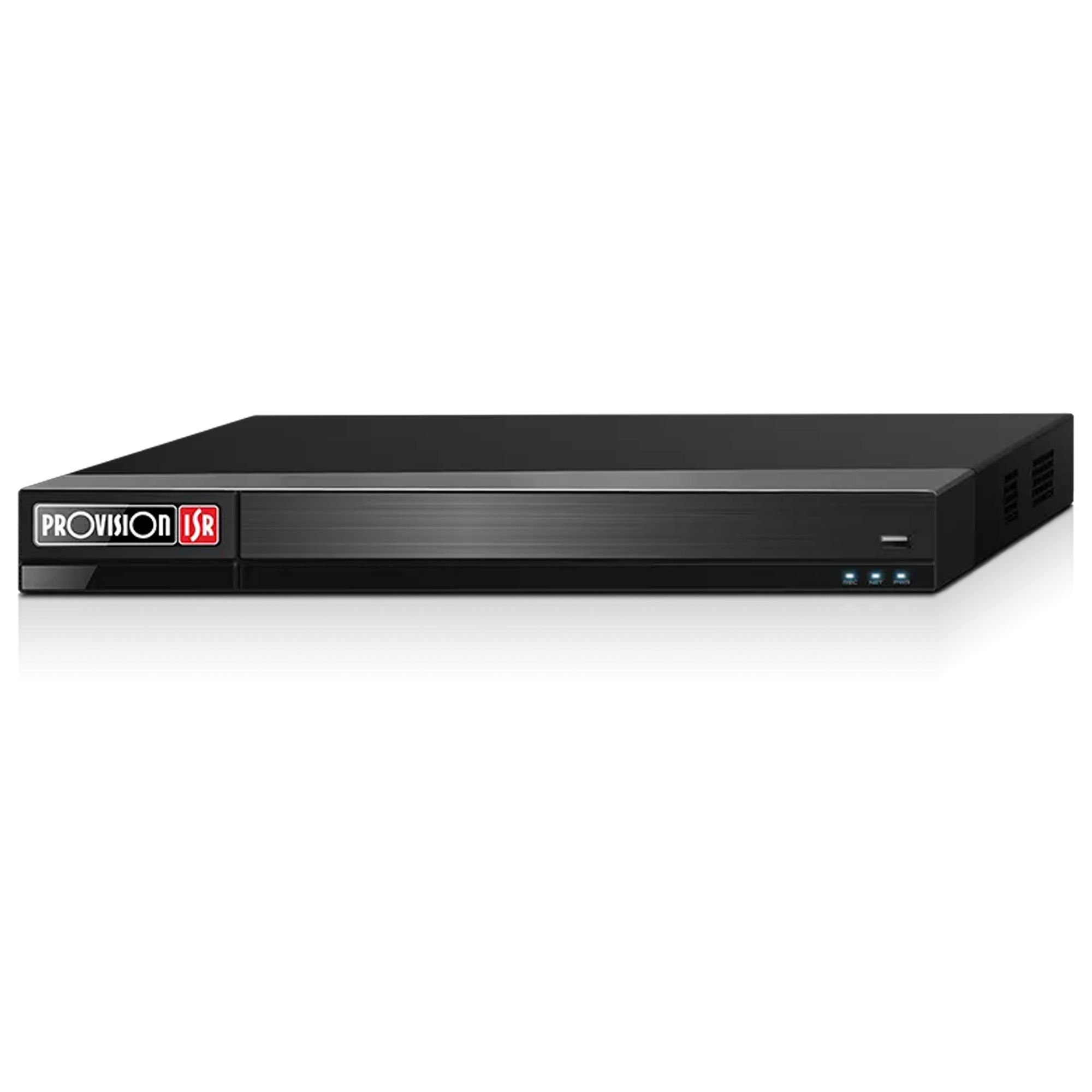

The Provision-ISR NVR12-16400FAN(1U) is a premium 16-channel 12MP Network Video Recorder (NVR) designed for commercial, industrial and high-security CCTV installations across South Africa. Supporting real-time 12MP recording, advanced Face Recognition, Licence Plate Recognition (LPR) and intelligent DDA2 AI analytics, this NDAA-compliant recorder delivers enterprise-grade surveillance performance for businesses, warehouses, schools, estates and corporate facilities.
Built for professional installers, the NVR supports up to 16 IP cameras with 160Mbps incoming and outgoing bandwidth, ensuring smooth live viewing, recording and remote access. Powerful AI features include Face Recognition, DDA Search, Object Classification, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Illegal Parking, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode also enables face detection and recognition using up to 2 non-AI IP cameras, adding intelligent capabilities to existing surveillance systems.
The recorder features 4K HDMI output, 16-channel simultaneous playback, two-way audio, 8 alarm inputs and 4 alarm outputs, dual Gigabit network ports and support for two SATA hard drives up to 10TB each, providing up to 20TB of storage for long-term video retention.
Combining high-resolution recording, intelligent AI-powered surveillance and dependable performance, the Provision-ISR NVR12-16400FAN(1U) is the ideal solution for professional CCTV installations requiring advanced analytics, scalable storage and reliable security. It is perfectly suited for organisations seeking a future-ready surveillance platform that delivers enhanced protection and operational efficiency throughout South Africa.
Features:
Video:
- Input: 16 Channel Support
- 16 Channel Standard Connection (Via RJ-45 Network Port)
- Output: HDMI (4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)
Bandwidth:
- Incoming: 160Mbps
- Outgoing: 160Mbps
Decoding Support:
Analytics:
- Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
- Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.
Recording:
- 16CH 12MP Real-Time
- FPS: 400 (PAL) / 480 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 8+IPC
- Output: 4+IPC
Storage:
- 2 x SATA (Up to 10TB each)
USB Port:
- 2 USB 2.0 Port + 1 USB 3.0 Port
Network:
- 2 x RJ-45: 10/100/1000Mbps Each
Remarks:
The following features are based on firmware v1.4.13_88006_RD260520 and are subject to firmware version changes.
