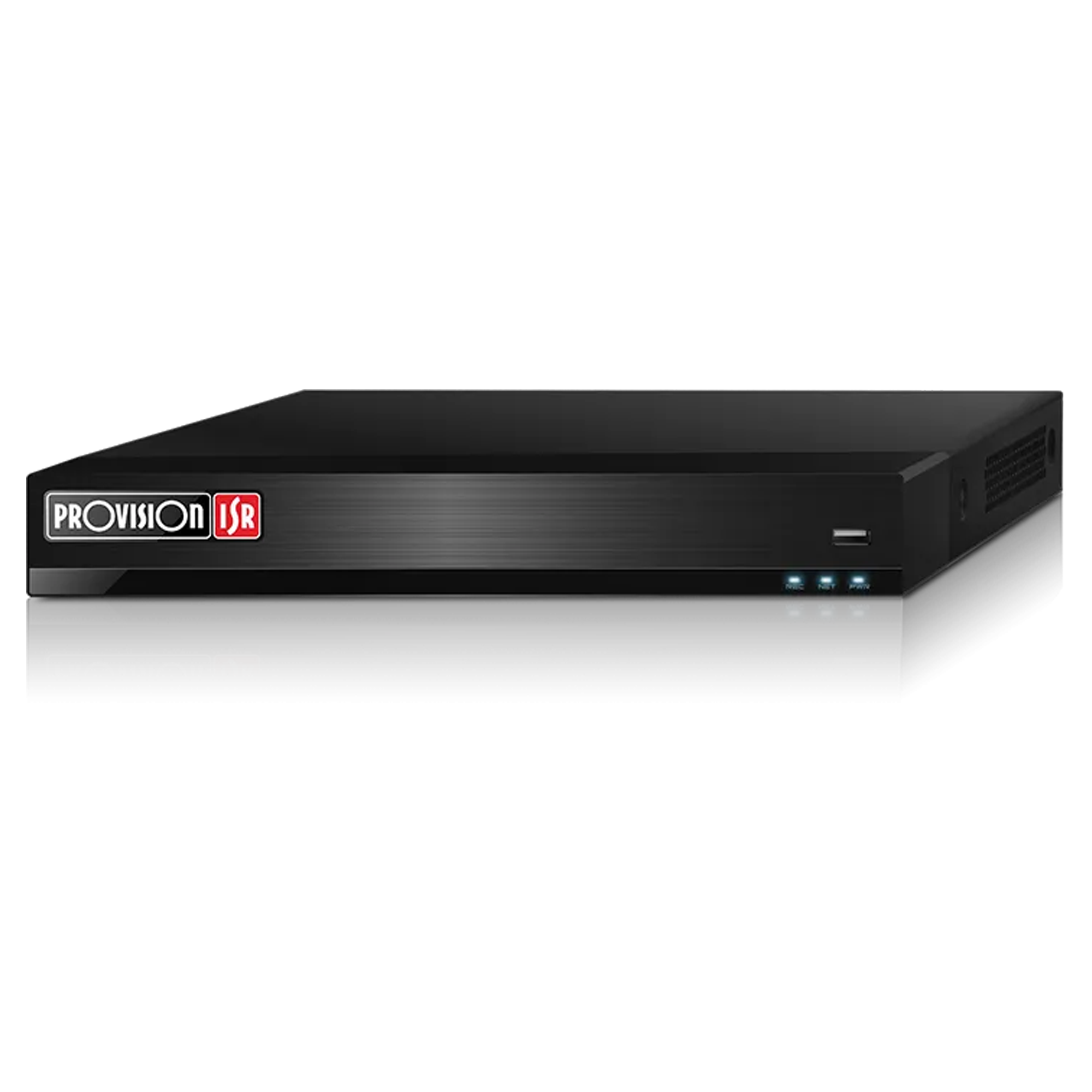

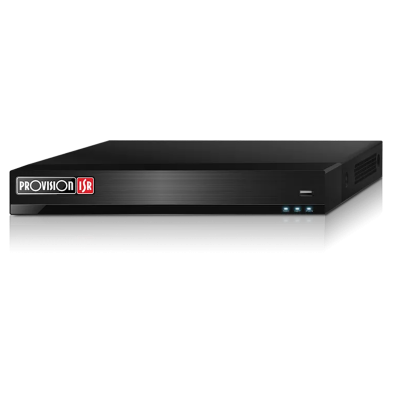

NVR12-8200PFAN 8CH NVR 12MP+ 8POE Facial/ LPR Cam

Code: PC-5407

Features

Features

The Provision-ISR NVR12-8200PFAN is a premium 8-channel 12MP PoE Network Video Recorder (NVR) designed for businesses, retail environments, schools, warehouses and high-security installations across South Africa. Featuring an integrated 8-port PoE switch, it powers and connects compatible IP cameras through a single Ethernet cable, simplifying installation while delivering exceptional surveillance performance. Fully NDAA compliant, it is the ideal choice for professional CCTV projects requiring reliability, security and advanced AI capabilities.

Supporting real-time 12MP recording, the NVR combines crystal-clear image quality with intelligent analytics, including Face Recognition, Licence Plate Recognition (LPR), DDA Search, Object Classification, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Illegal Parking, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Smart Search and Thermal Camera Support. Advanced Face Recognition Mode enables face detection and recognition using up to 2 non-AI IP cameras, enhancing existing surveillance systems without requiring AI cameras throughout.

Built for demanding commercial applications, the recorder features 8 alarm inputs, 4 alarm outputs, two-way audio, 80Mbps incoming and outgoing bandwidth, 4K HDMI output, and supports one SATA hard drive up to 10TB for extended recording. Simultaneous 8-channel playback and remote viewing provide fast access to live and recorded footage from virtually anywhere.

Combining simplified PoE installation, enterprise-grade AI analytics and high-resolution recording, the Provision-ISR NVR12-8200PFAN is the ideal surveillance solution for professional installers and organisations seeking intelligent, scalable and dependable CCTV systems throughout South Africa.

Features:

Video:

  • Input: 8 Channel Support
  • 8 Channel PoE / Standard Network Connection (Via 8 x RJ-45 / Network)
  • Output: HDMI (4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

  • Incoming: 80Mbps
  • Outgoing: 80Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line), Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
  • Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.

Recording:

  • 8CH 12MP Real-Time
  • FPS: 200 (PAL) / 240 (NTSC)

Playback:

  • Local: 8Ch Simultaneously
  • Remote: 8Ch Simultaneously

Audio:

  • Input: 1CH + IPC Inputs
  • Output: 1CH + IPC Output
  • 2 Way Audio

Alarm:

  • Input: 8+IPC
  • Output: 4+IPC

Storage:

  • 1 x SATA (Up to 10TB each)

USB Port:

  • 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

  • 1 x RJ-45: 10/100/1000Mbps Each

Remarks:

  • The following features are based on firmware v1.4.13_88006_RD260520 and are subject to firmware version changes.
