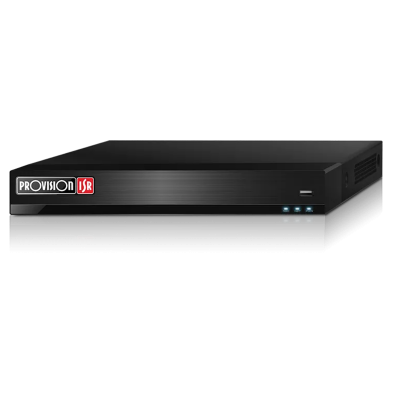

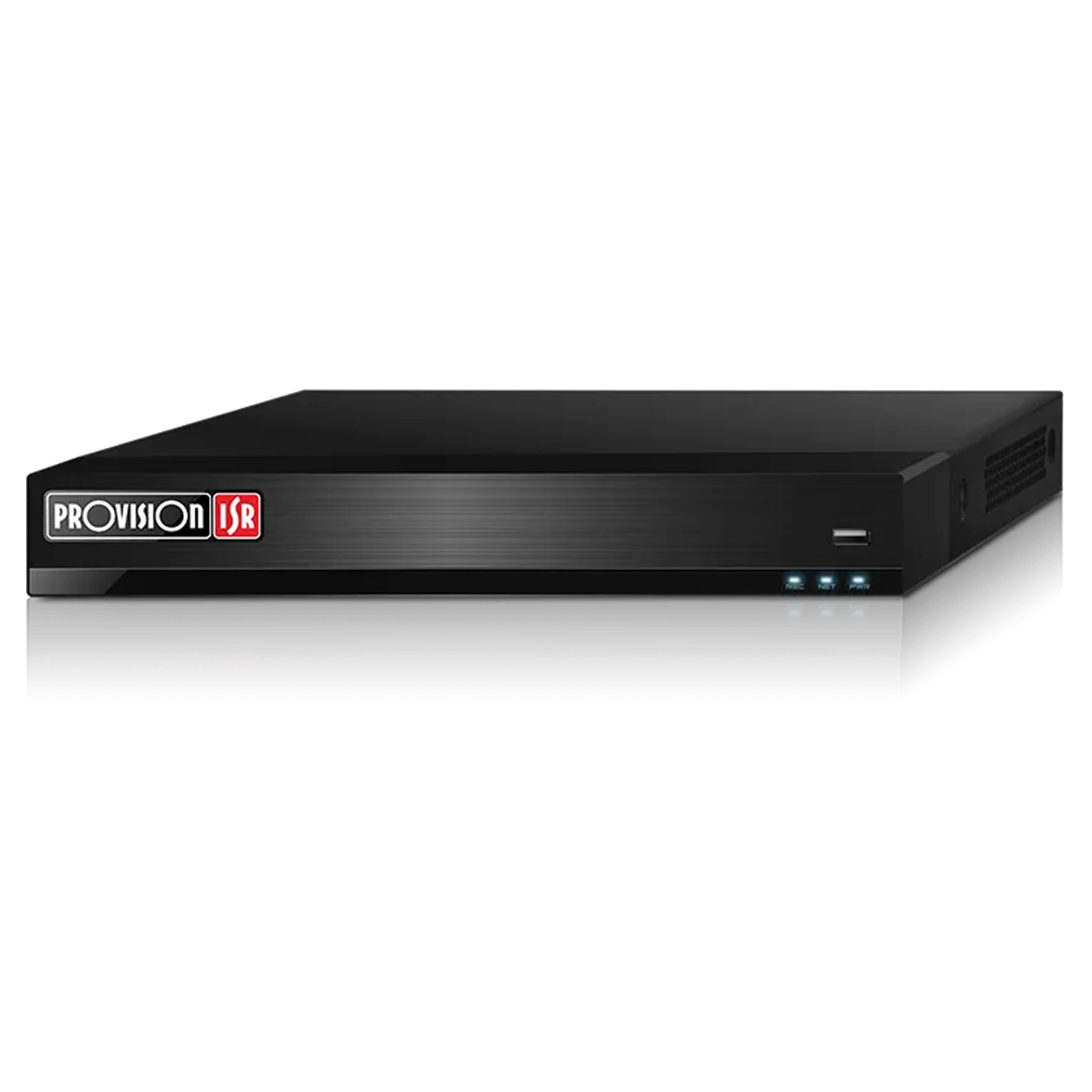

NVR12-8200FAN 8CH 12MP Face Recognition NVR w Alarms

Code: PC-5406

Features

Features

The Provision-ISR NVR12-8200FAN is a premium 8-channel 12MP Network Video Recorder (NVR) designed for businesses, commercial properties, schools, warehouses and high-security sites across South Africa. Supporting real-time 12MP recording, advanced Face Recognition, Licence Plate Recognition (LPR) and intelligent AI analytics, it delivers exceptional surveillance performance while meeting NDAA compliance requirements.

Ideal for professional CCTV installers and organisations requiring enhanced security, the NVR combines high-resolution recording with powerful analytics to improve situational awareness and reduce false alarms. Advanced AI features include Face Recognition, DDA Search, Object Classification, Line Crossing, Sterile Area Protection, People Intrusion, Loitering Detection, Illegal Parking, Object Monitoring, Object Counting, Crowd Gathering, Heat Mapping, Camera Tampering, Thermal Camera Support and Smart Search. The recorder also supports Advanced Face Recognition Mode, enabling face detection and recognition from up to 2 non-AI IP cameras.

Designed for demanding applications, the NVR features 8 alarm inputs and 4 alarm outputs, two-way audio, 80Mbps incoming and outgoing bandwidth, dual Gigabit network ports for improved performance and redundancy, and 4K HDMI video output for crystal-clear live viewing and playback. Support for one SATA hard drive up to 10TB and simultaneous 8-channel playback ensures reliable storage and efficient incident review.

Whether protecting corporate offices, retail environments, industrial facilities or critical infrastructure, the Provision-ISR NVR12-8200FAN provides intelligent AI-powered surveillance, enterprise-level performance and dependable recording, making it an ideal solution for professional CCTV installations throughout South Africa.

Features:

Video:

  • Input: 8 Channel Support
  • 8 Channel Standard Connection (Via RJ-45 Network Port)
  • Output: HDMI (4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

  • Incoming: 80Mbps
  • Outgoing: 80Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering, DDA Search, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line), Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
  • Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.

Recording:

  • 8CH 12MP Real-Time
  • FPS: 200 (PAL) / 240 (NTSC)

Playback:

  • Local: 8Ch Simultaneously
  • Remote: 8Ch Simultaneously

Audio:

  • Input: 1CH + IPC Inputs
  • Output: 1CH + IPC Output
  • 2 Way Audio

Alarm:

  • Input: 8+IPC
  • Output: 4+IPC

Storage:

  • 1 x SATA (Up to 10TB each)

USB Port:

  • 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

  • 2 x RJ-45: 10/100/1000Mbps Each

Remarks:

  • The following features are based on firmware v1.4.13_88006_RD260520 and are subject to firmware version changes.
