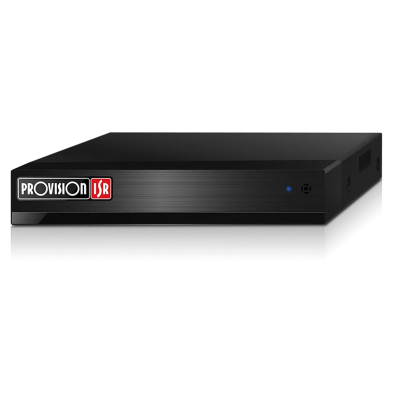

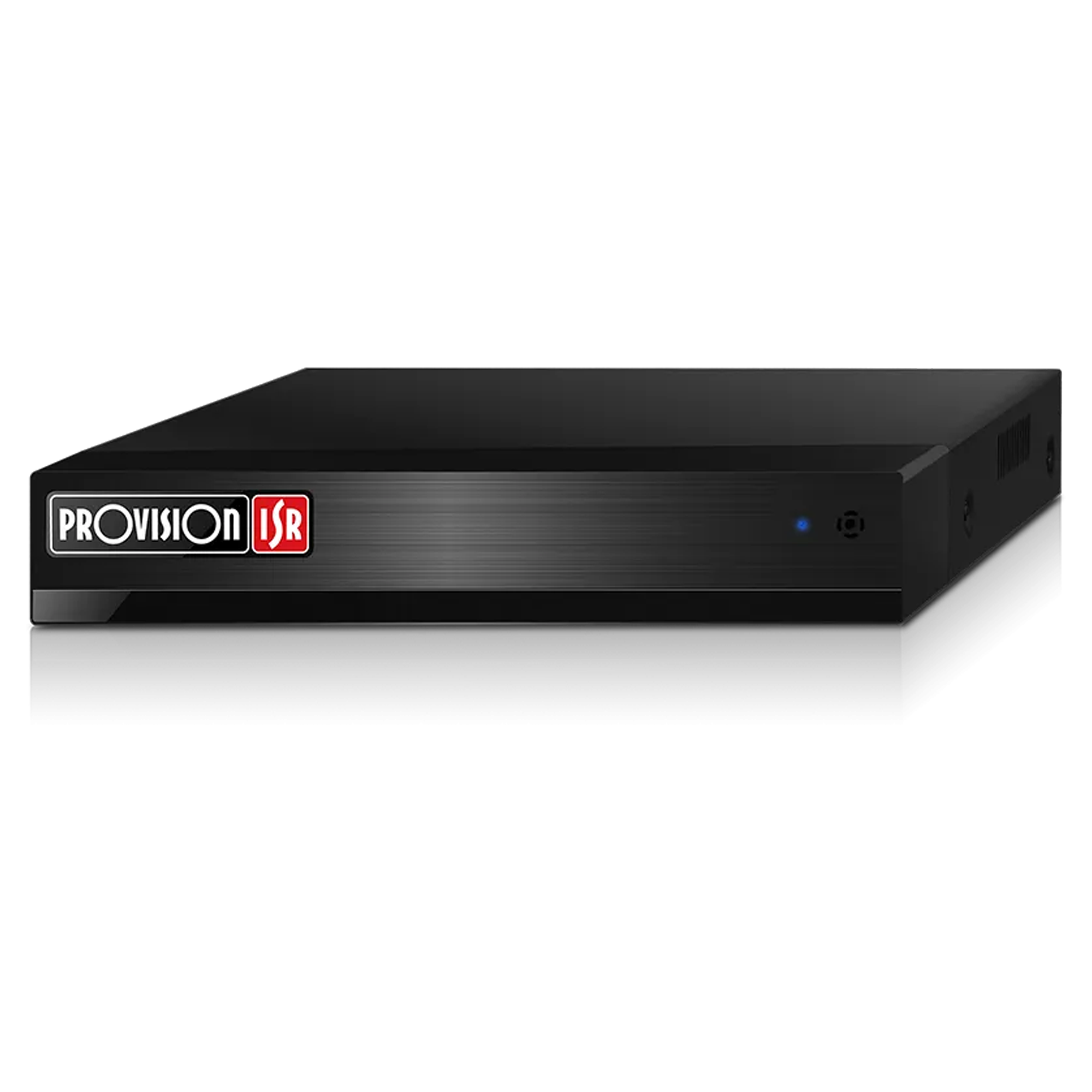

NVR5-8200PXN(MM) 8CH 5MP NVR With PoE

Code: PC-5405

Features

Features

The Provision-ISR NVR5-8200PXN(MM) is a professional 8-channel 5MP PoE Network Video Recorder (NVR) designed for homes, offices, retail stores and small to medium-sized businesses across South Africa. Featuring an integrated 8-port PoE switch, it powers and connects compatible IP cameras through a single Ethernet cable, making installation faster, cleaner and more cost-effective.

Supporting real-time 5MP recording across all 8 channels, the NVR delivers exceptional image quality while advanced H.265+, H.265 and H.264 compression reduces bandwidth and storage requirements. Built to meet NDAA compliance standards, it provides a trusted surveillance solution for professional CCTV installations.

When paired with compatible Provision-ISR AI cameras, the recorder supports intelligent analytics including Line Crossing Detection, Camera Tampering, Loitering Detection, Sterile Area Protection, People Intrusion, Illegal Parking, Object Monitoring and Counting, Crowd Gathering, Heat Mapping, Smart Search and Thermal Camera Support, helping reduce false alarms and improve response times.

With 64Mbps incoming and outgoing bandwidth, simultaneous 8-channel playback, HDMI and VGA outputs, support for one SATA hard drive up to 6TB, and remote viewing via compatible mobile devices and PCs, the NVR offers reliable performance and simple system management.

Ideal for professional installers and end users alike, the Provision-ISR NVR5-8200PXN(MM) combines simplified PoE installation, intelligent AI-powered surveillance and dependable recording into one compact solution, making it the perfect choice for residential and commercial CCTV systems throughout South Africa.

Features:

Video:

  • Input: 8 Channel Support
  • 8 Channel PoE / Standard Network Connection (Via 8 x RJ-45 / Network)
  • Output: HDMI / VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

  • Incoming: 64Mbps
  • Outgoing: 64Mbps

Decoding Support:

  • H.265S/H.265+/H.265/H264

Analytics:

  • Camera Tampering,
  • DDA2 With Object Classification,
  • Line Crossing (DDA / Pixel Based),
  • Sterile Area (DDA / Pixel Based),
  • Loitering Detection,
  • Illegal Parking,
  • Audio Exception,
  • Heat Map,
  • Object Counting (Line),
  • Object Counting (Area),
  • Crowd Gathering,
  • People Intrusion,
  • Object Monitoring,
  • Smart Search,
  • Thermal

*DDA Analytics Live Snapshots are not supported

Recording:

  • 8CH 5MP Real-Time
  • FPS: 200 (PAL) / 240 (NTSC)

Playback:

  • Local: 8Ch Simultaneously
  • Remote: 8Ch Simultaneously

Audio:

  • Input: IPC Inputs Only
  • Output: IPC Outputs Only

Alarm:

  • Input: Based on IPC only
  • Output: Based on IPC only

Storage:

  • 1 x SATA (Up to 6TB each)

USB Port:

  • 2 USB 2.0 Port

Network:

  • 1 x RJ-45: 10/100Mbps Each

Remarks:

  • These features are based on firmware v1.4.13_87338_RD260421 and are subject to firmware version changes.
