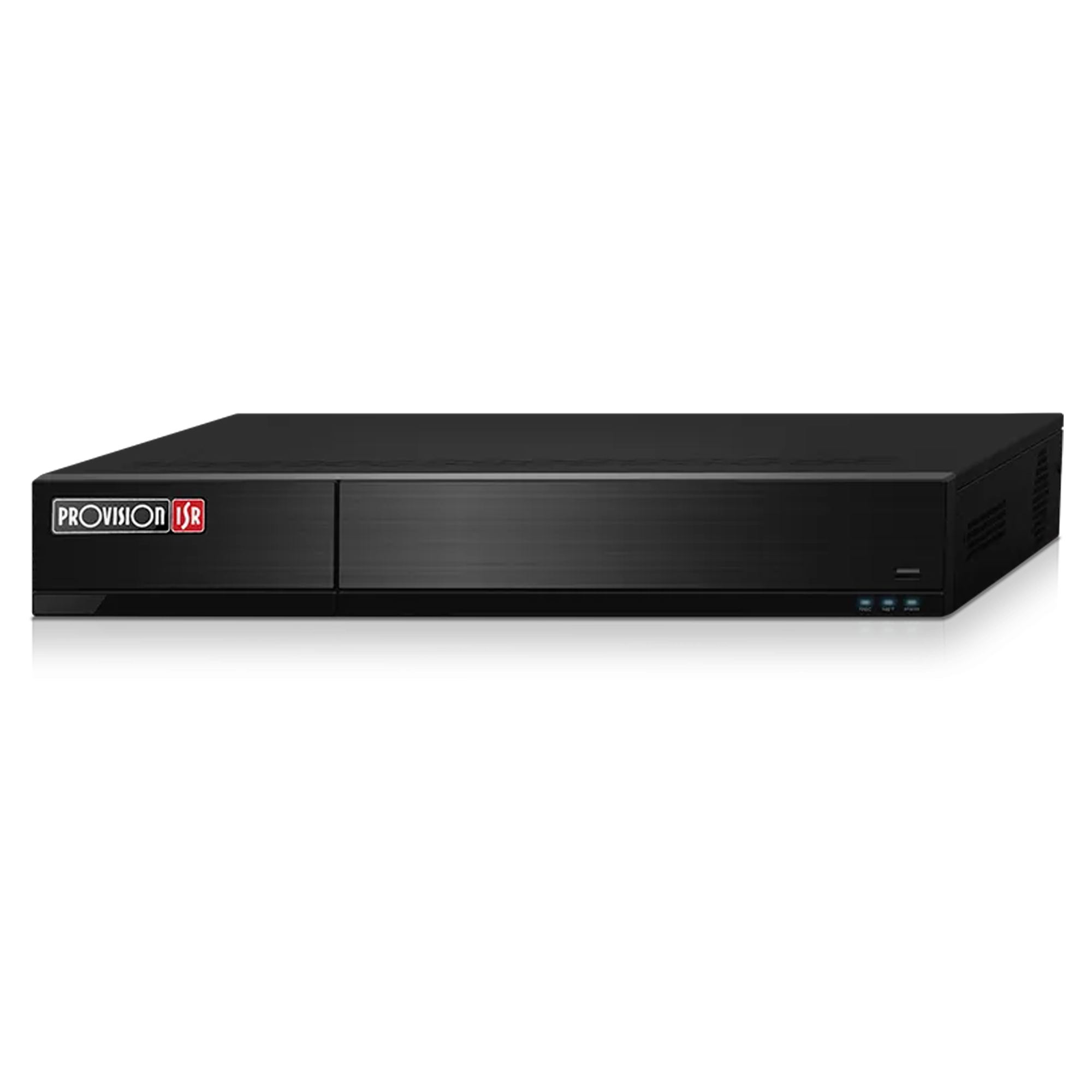

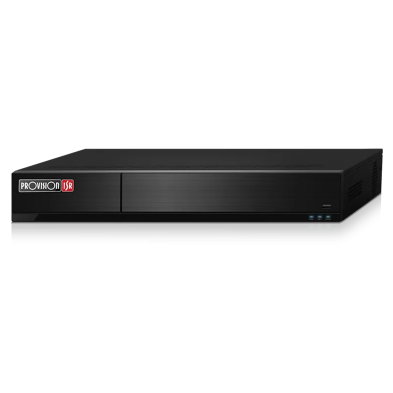

Provision-ISR SH-32400A5N-5L(1.5U)-V2 is a high-quality dynamic hybrid digital video recorder obtainable in an elegant 1U case. This technology allows users to add advanced IP cameras alongside analogue ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder supports Provision-ISR Standard Video Analytics (Pixel Based).
Features:
- Video Input: 32CH Standard BNC + 8CH IP Video Output:
- HDMI – FHD
- VGA
- CVBS Recording:
- HD Analog: 3K/5MP Lite: Up to 10FPS Per Channel / 4MP Lite / 2MP: Up to 12/15FPS Per Channel / 2MP Lite / 1MP: Up to 25/30FPS Per Channel
- CVBS: 960H: Up to 25/30FPS Per Channel
- IP: 5MP and lower: 25/30FPS Per Channel Playback:
- Local: 16Ch Simultaneously
- Remote: 8Ch Simultaneously Audio:
- Input: 4CH + IPC Inputs
- Output: 1CH + IPC Outputs Alarm:
- Input: 4+IPC
- Output: 1+IPC Storage:
- 4 x SATA (Up to 10TB each)
- 1 x E-SATA (Up to 10TB each) Network:
- 1 x RJ-45: 10/100/1000Mbps PTZ Support:
- RS-485 / CoC / IP over Network Power Supply:
- DC12V/4A Analytics: AI by IPC:
- DDA1 Analytics Supported by the camera AI By DVR:
- AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels) Based on FW Version: v1.4.0 Features subject to firmware version changes
