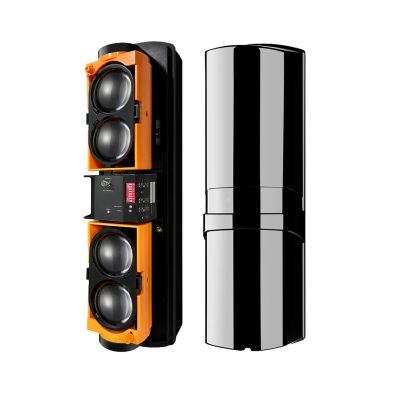

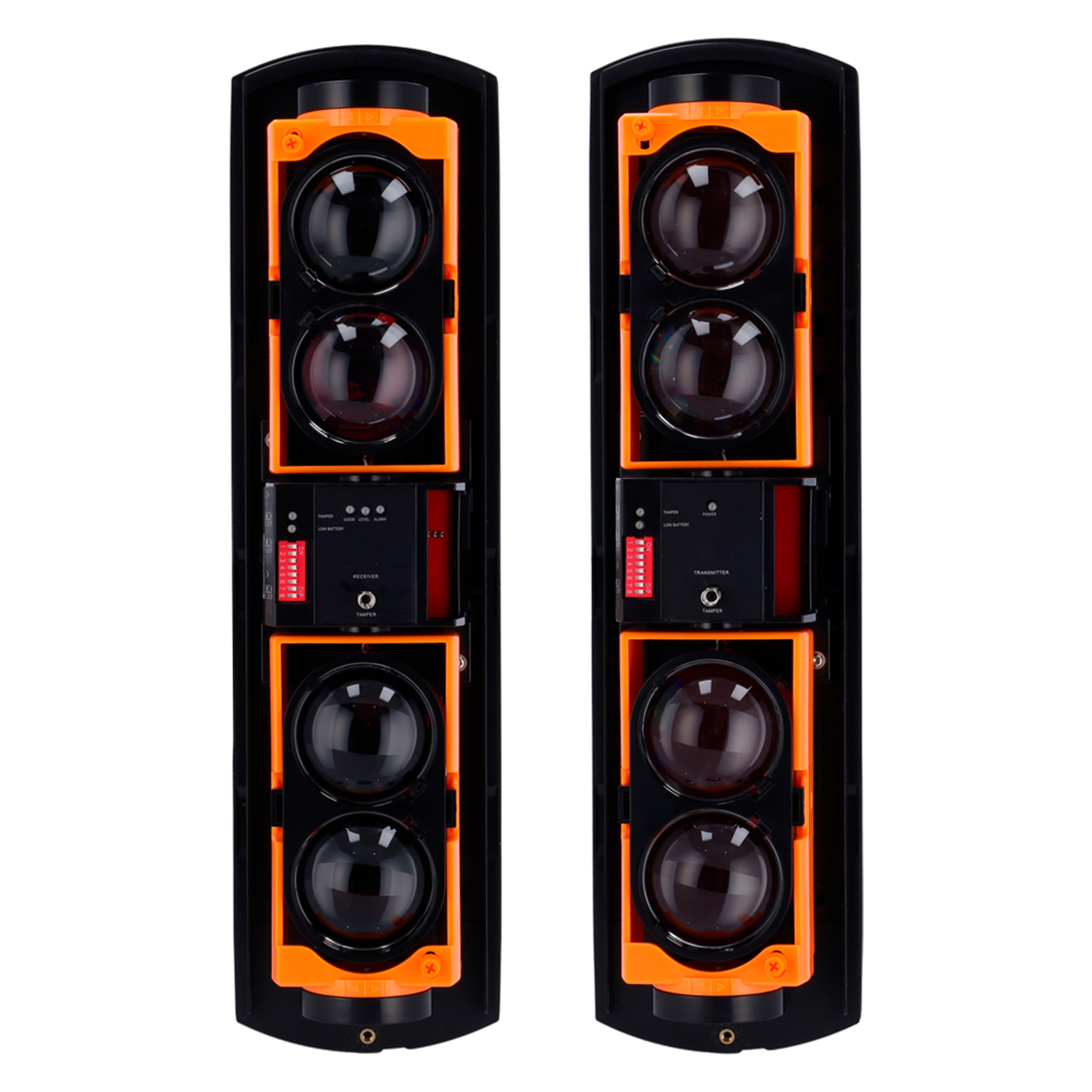

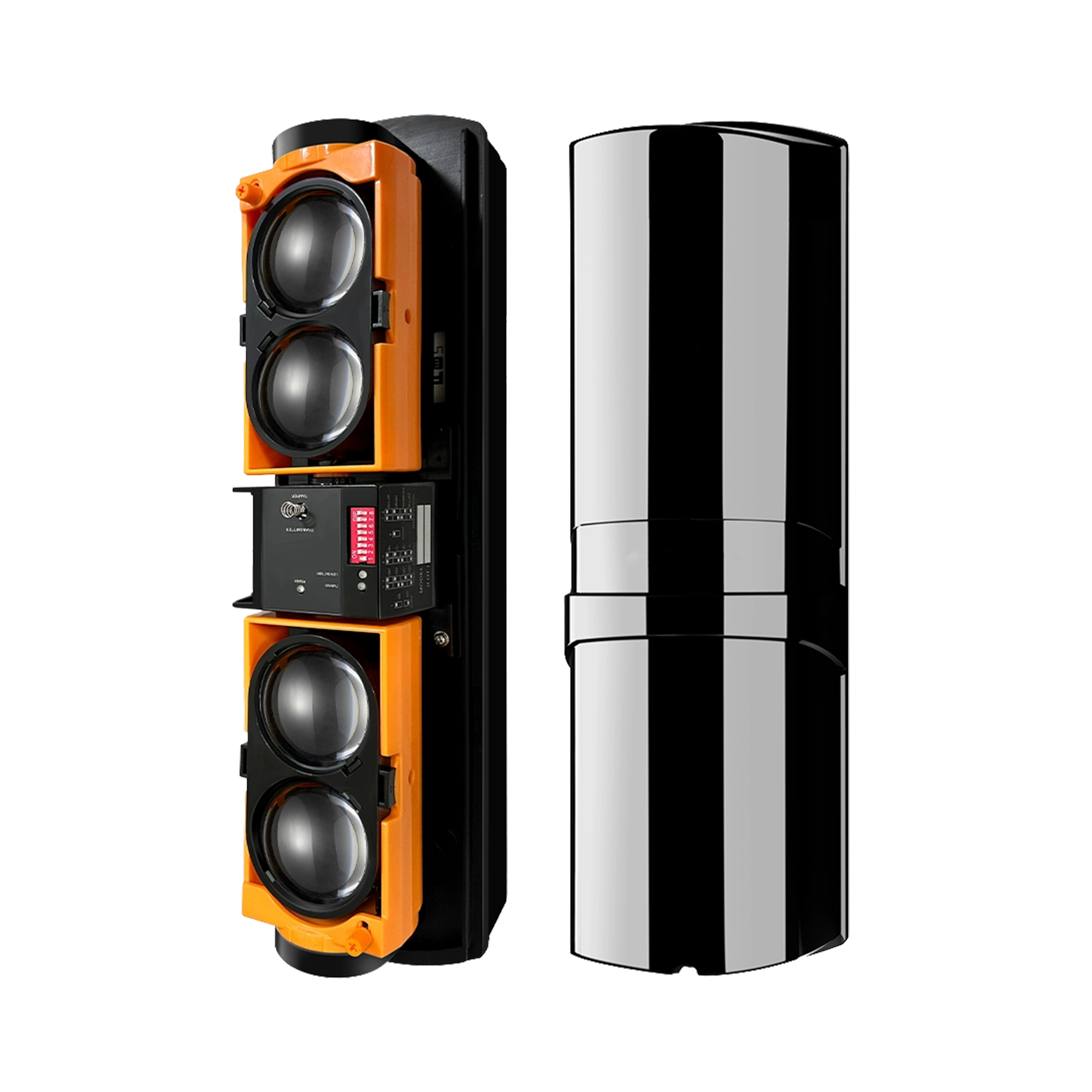

The ABH-200W Wireless Beam is a professional-grade outdoor intrusion detection system, offering enhanced security with synchronized infrared beams. Designed for high-performance perimeter protection, it combines wireless flexibility, extended battery life, and precision alignment for reliable, long-range coverage in demanding environments.
Key Features:
- 200m
- Includes a ER26500 3.6V 9000mA Lithium battery and Sherlotronic plug-in module
- Frequency Selection: 4 independent channels to avoid signal interference between multiple beams.
- Selectable Response Times: Adjustable response times: 50 ms, 100 ms, 300 ms, 700 ms, offering flexibility based on environment and security requirements.
- Precision Beam Alignment System: Independent top and bottom beam alignment for improved installation accuracy.
- LED Alignment Indicators:
- Green (GOOD) – Optimal alignment
- Blue (LEVEL) – Partial alignment
- Red (ALARM) – Misalignment or beam interruption
- Adjustable Transmitter Power Levels: Choose from four TX output settings to optimize range and battery life:
- XL = 100% (maximum range)
- L = 70%
- M = 40%
- S = 20% (extends battery life)
- Robust Build and Tamper Protection: Front lid and wall tamper switches for enhanced security. Wall tamper can be disabled if not required
- Flexible Installation Options: Supports horizontal and vertical alignment adjustments for precise beam placement.
