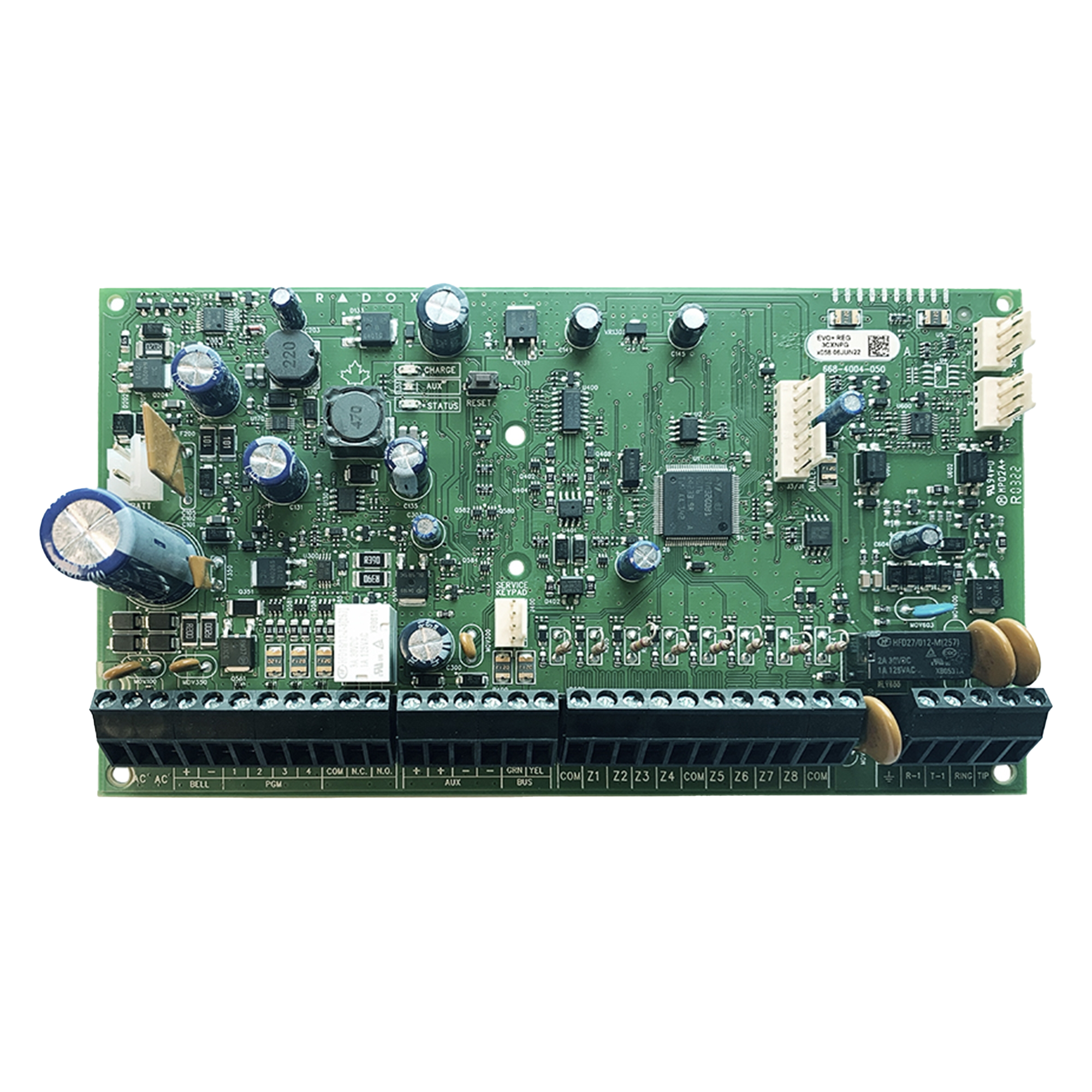

The Paradox EVOHD+ Panel is an advanced security and access control system designed for high-performance monitoring and protection. It supports up to 192 zones, 999 user codes, and 32 doors, making it ideal for large-scale installations.
Features:
- 192-Zones
- 8 Partitions
- 999 User codes
- 5 on-board PGMs
- 254 expansion modules,
- Digital bus
- Provides constant power, supervision and two-way communication between the control panel and modules
- Efficient and effective use of zone deployment
- Integrated tamper reporting of EVOHD+ connected devices without additional wiring
- PGM configuration
- 4 on-board solid-state PGMs (2-4)
- 1 on-board 5A relay PGM
- PGM1 may be used as a 2-wire smoke input
- Faster landline communications for software (1200 baud)
- Efficient battery charging up to 1.5A
- Power supply
- 2.5A switching power supply
- 2A power available for modules/devices (requires 75VA transformer)
