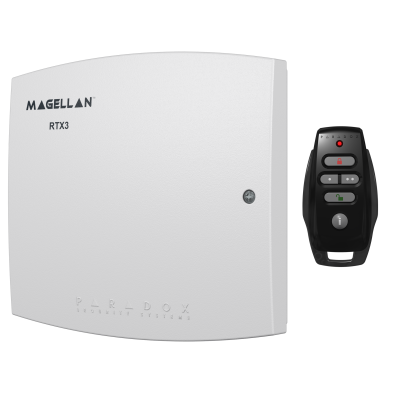

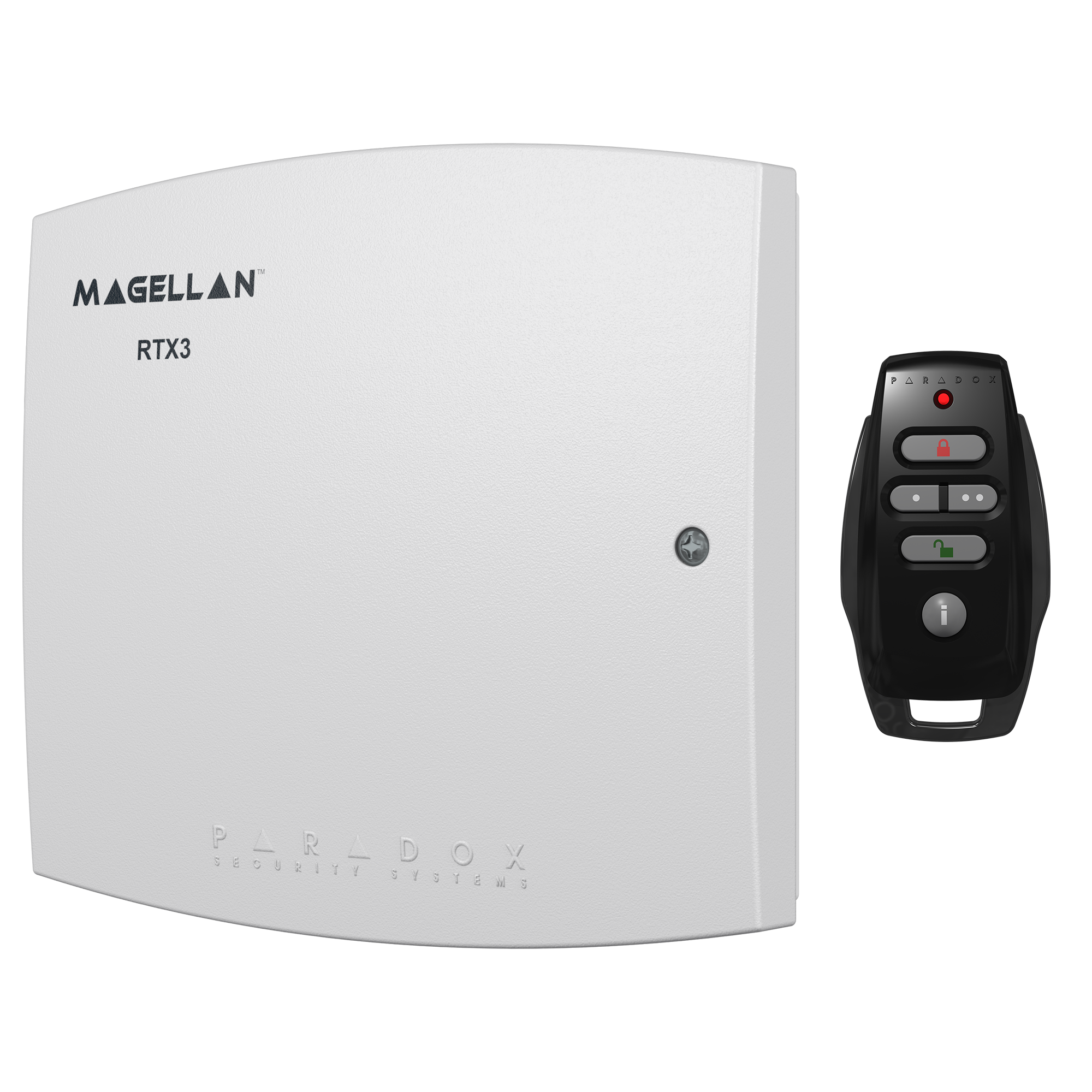

The RTX3 is a 2-way, 32 zone wireless expansion module which enables EVO and SP Series control panels to support wireless hardware such as sirens, motion detectors, water detectors, and remote controls.
Features
- 32 wireless addressable zones
- Maximum number of remote controls: 999 with EVO Series, 32 with Spectra SP Series
- Supports wireless PGMs (8 with EVO Series, 16 with Spectra SP Series only)
- Supports SR230 Wireless Sirens
- Supports all Magellan transmitters including 2WPGM
- Supports 2 RPT1 and 8 K37 (Spectra SP Series only)
- Remote control compatibility: REM101, REM2, and REM25
- 3 PGM outputs and 1 optional output
- PGM outputs: PGM1 and PGM2 - 150 mA PGM transistor outputs
- PGM3 - Form C relay output rated at 5A / 28 Vdc, N.O. / N.C. (PGM4 optional)
- Low battery, tamper and check-in supervision for reconnected modules
- Transmitter signal strength display
- Noise level test and indicator
- RF jamming supervision
- In-field firmware upgradeable via 307USB
The REM25 is a two-way wireless remote control that allows you to safely arm and disarm your Paradox security system and receive instant notification on your actions. It also allows you to verify the status of your system from a distance.
Features
- Performs six different actions such as arming and disarming your system, enabling and disabling PGMs and providing system status
- Secured encrypted disarm function
- Action instant confirmation
- System status display
- Provides system status memory
- Displays system status using visual (LED) and auditor feedback
- Supports StayD
- Water resistant
- Easily replaceable long-life lithium battery that lasts for years with normal operation use
