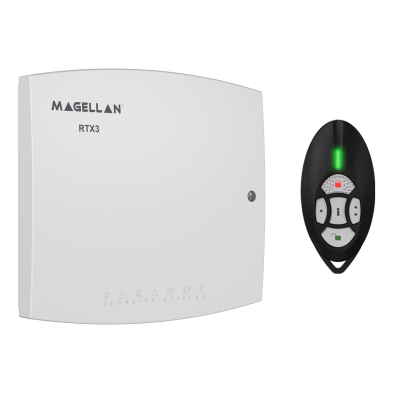

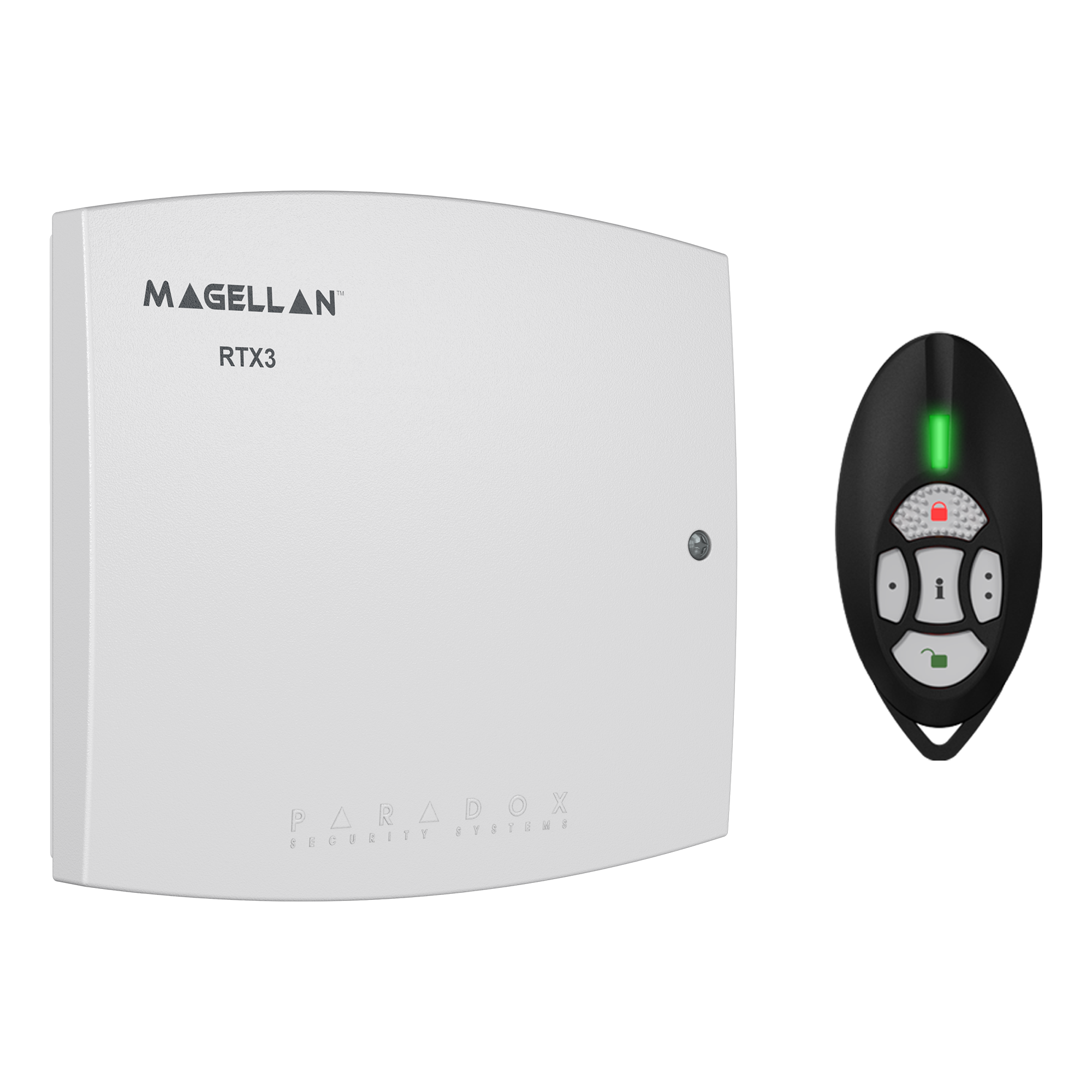

The RTX3 is a 2-way, 32 zone wireless expansion module which enables EVO and SP Series control panels to support wireless hardware such as sirens, motion detectors, water detectors, and remote controls.
Features
- 32 wireless addressable zones
- Maximum number of remote controls: 999 with EVO Series, 32 with Spectra SP Series
- Supports wireless PGMs (8 with EVO Series, 16 with Spectra SP Series only)
- Supports SR230 Wireless Sirens
- Supports all Magellan transmitters including 2WPGM
- Supports 2 RPT1 and 8 K37 (Spectra SP Series only)
- Remote control compatibility: REM101, REM2, and REM25
- 3 PGM outputs and 1 optional output
- PGM outputs: PGM1 and PGM2 - 150 mA PGM transistor outputs
- PGM3 - Form C relay output rated at 5A / 28 Vdc, N.O. / N.C. (PGM4 optional)
- Low battery, tamper and check-in supervision for reconnected modules
- Transmitter signal strength display
- Noise level test and indicator
- RF jamming supervision
- In-field firmware upgradeable via 307USB
The REM2 is a water-resistant 5-button remote control that provides the user with the status of their system by pressing the [ i ] button. The remote control provides both auditory and visual feedback in an attractive streamlined style.
Features
- Supports StayD (Version 2.0 or higher)
- System Status Memory: The REM2 will keep the last system status received from the control panel in memory. Momentarily press the Info button to display the last system status--even when out of range. Used to confirm the last action you did on the system while away from the system.
- Built-in transceiver (868 MHz)
- Displays system status using visual (LED) and auditory feedback
- Press the Status button at any time to receive the system status
- Perform up to 6 different actions per remote control
- Compact, water-resistant design with backlight for buttons
