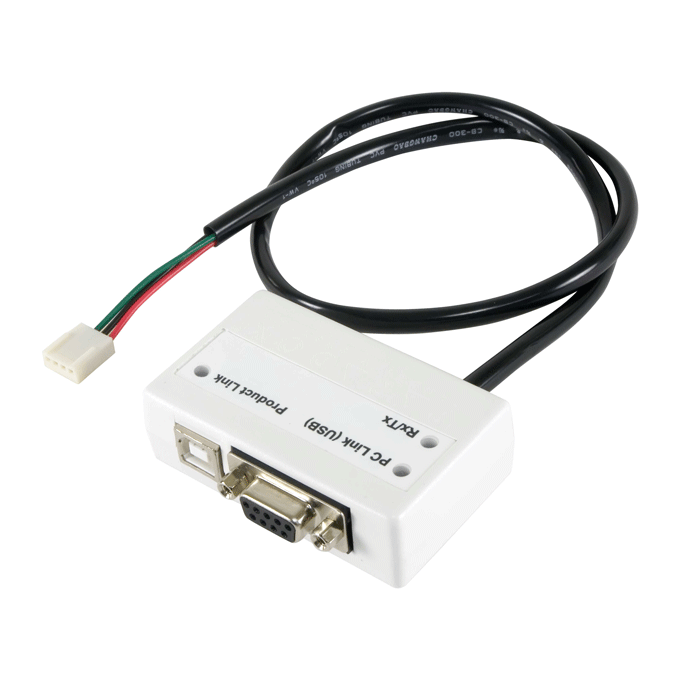

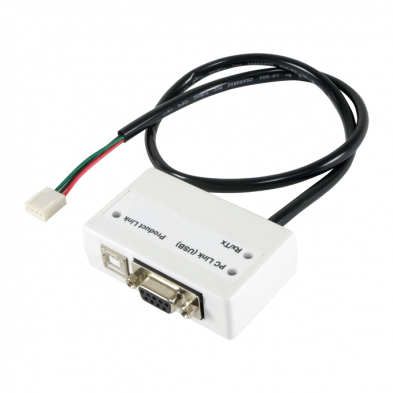

The Direct Connect Interface (307USB) allows for direct on-site communication between a computer and a control panel. It can also be used to upgrade your control panel’s firmware.
Features
- Incorporates a USB port and a serial port (DB-9)
- Enables control panel to communicate with a PC at 60m (200ft)
- Connect from the control panel's serial port connector to a PC's serial (DB-9) or USB port
- Includes 3 LED status indicators (PC, Panel and RX/TX)
- Communication speed:
- 57.6k baud (MAGELLAN)
- 38.4k baud (EVO)
- 9.6k baud (MG series and Spectra SP series)
